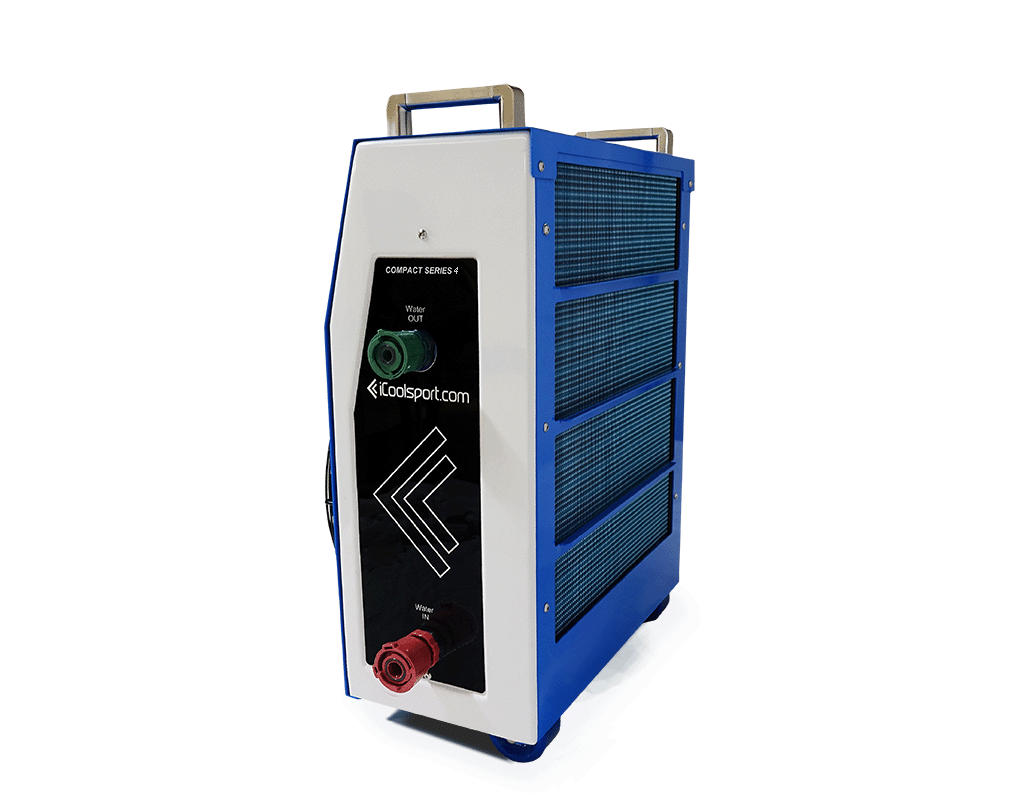

The iCoolsport Compact XP Dual Temp is an ultra-powerful, commercial-grade portable cooling and heating unit engineered for fast temperature management of multi-athlete pools, contrast therapy tubs, and spa baths up to 2,000 Liters. Delivering a massive 7,200 Watts of cooling and 7,100 Watts of heating power, it allows sports teams, recovery centers, and home users to rapidly shift water temperatures from 4°C (39°F) up to 40°C (104°F) for optimal contrast recovery therapy.
Encased in a heat-cured, marine-grade aluminum chassis with stainless steel handles and polyurethane transport wheels, the Compact XP Dual Temp is built to withstand rigorous travel and daily continuous operation. Operated via an integrated 10-inch Full HD capacitive touch screen or remotely over Wi-Fi, it runs a fully automated self-diagnostic and startup routine.
Key Product Features & Core Technology
-
7.2 kW Heating & Cooling Capacity: Delivers high thermal transfer for rapid cooling down to 4°C or heating up to 40°C in pools up to 2,000 L (528 US gal).
-
Pure Titanium Heat Exchanger: Corrosion-proof titanium plumbing allows safe operation with standard pool sanitizers, chlorine, and salt water without degrading internal components.
-
10-Inch Full HD Splash-Proof Touchscreen: High-brightness capacitive screen running iCoolsport's proprietary software with ONE TOUCH START automated system diagnostic and power management.
-
Wi-Fi Connectivity & Smart Remote Control: Allows users to adjust temperature setpoints, monitor system parameters, and schedule sessions remotely via smartphone or tablet.
-
Heavy-Duty Travel-Ready Chassis: Built with a Blaze Blue epoxy-coated marine-grade aluminum frame, stainless steel carrying handles, and polyurethane transport wheels for mobile team travel.
-
Built-in Electrical RCD Safety: Integrated ground-fault protection system (30mA instant shut-down) safely powers both the internal rotary compressor and external circulation pump.
Technical Specifications Summary
| Feature / Metric | Specification |
| Brand / Manufacturer | iCoolsport (Australia) |
| Model Series | Compact XP Dual Temp (Portable Chiller/Heater) |
| Pool Capacity Rating | Recommended for pools and baths up to 2,000 Liters (528 Gallons) |
| Cooling Power Output | 7,200 Watts (7.2 kW / ~2.8 HP Equivalent) |
| Heating Power Output | 7,100 Watts (7.1 kW) |
| Temperature Control Range | 4°C (39°F) Cold Plunge up to 40°C (104°F) Hot Therapy |
| Chassis / Frame Build | Marine-Grade Aluminium with High-Strength Epoxy Coating |
| Heat Exchanger Material | 100% Pure Titanium (Salt & Chlorine Resistant) |
| Display & Controls | 10-Inch Full HD Capacitive Touch Screen + Built-In Wi-Fi |
| Operating Acoustics | Low Noise ~59 dBA (tested at 1.5 meters) |
| Voltage & Amps | 220V (7.5A Run / 14A Max) or 110V (15A Run / 28A Max) |
| Dimensions (H × W × D) | 25.6" × 21.6" × 13.8" (650 mm × 550 mm × 350 mm) |
| Net Weight | 40 kg (88 lbs) |
Safety & Setup Guidelines
Electrical Supply & RCD Safety: Ensure the unit is plugged into a dedicated, grounded electrical circuit matching the unit's voltage rating (110V or 220V). The built-in 30mA earth leakage device protects both the chiller unit and the connected water pump.
Water Flow Requirement: Always verify that the external circulation pump is fully primed with water and running prior to starting the cooling or heating sequence on the touch screen.
Airflow & Ventilation: Position the unit on a level surface with at least 3 feet (1 meter) of clear space in front of the fan grill to ensure maximum 2000 CFM heat exchange airflow.
